M40 – INJECTION MORTAR Product
Specifically formulated for repairing constructional cracks and voids with widths between 5mm and 100mm in brick, natural stone and concrete.

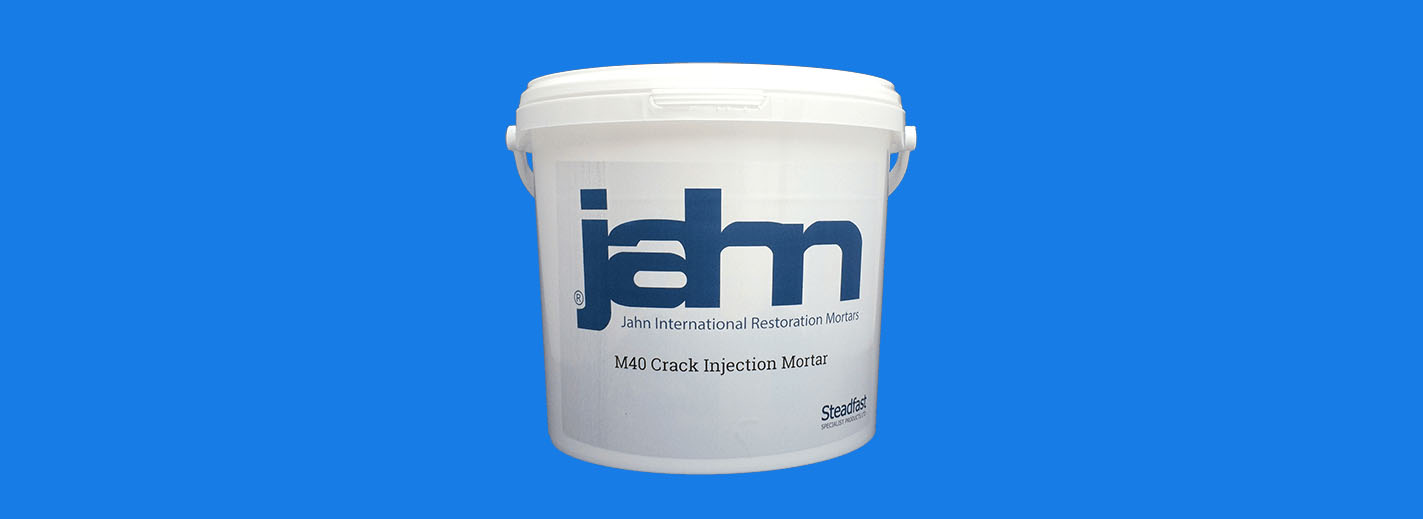

Jahn M40 Crack Injection Mortar is a mineral-based, single-component mortar that is supplied ready to mix with water. This improves quality and consistency of application in the field. M40 contains no acrylic or latex bonding agents or additives, is of pure origin and free from any toxic substances. It is vapour permeable for compatibility of masonry substrates.
M40 is an adjusted mortar for sealing constructional cracks ranging from 5 mm to 100 mm. It may be used in both non-structural and load bearing situations. M40 is coarser than M35 and M30.
Sealing constructional cracks from 5mm to 100mm in brick, natural stone and concrete.
Benefits:- Engineered in the lab, proven in the field
- Single component mixes with water only
- Highly moisture, frost and salt resistant and salt and moisture regulating
- Vapour permeable – prevents failure due to salt expansion or freeze/thaw cycles.
- Non-shrinking
- Scientifically controlled – no on-site chemistry resulting in product variation
- Can be manually or mechanically applied
- Strong adhesion
- Water Based: Environmentally and user safe – no solvent clean up or disposal problems
Gallery
Description
International Manufacturer of Precision Engineered Helical Bars, Wall Ties & Fixings
Specifically formulated for repairing constructional cracks and voids with widths between 5mm and 100mm in brick, natural stone and concrete.
Jahn M40 Crack Injection Mortar is a mineral-based, single-component mortar that is supplied ready to mix with water. This improves quality and consistency of application in the field. M40 contains no acrylic or latex bonding agents or additives, is of pure origin and free from any toxic substances. It is vapour permeable for compatibility of masonry substrates.
M40 is an adjusted mortar for sealing constructional cracks ranging from 5 mm to 100 mm. It may be used in both non-structural and load bearing situations. M40 is coarser than M35 and M30.
Sealing constructional cracks from 5mm to 100mm in brick, natural stone and concrete.
Benefits:- Engineered in the lab, proven in the field
- Single component mixes with water only
- Highly moisture, frost and salt resistant and salt and moisture regulating
- Vapour permeable – prevents failure due to salt expansion or freeze/thaw cycles.
- Non-shrinking
- Scientifically controlled – no on-site chemistry resulting in product variation
- Can be manually or mechanically applied
- Strong adhesion
- Water Based: Environmentally and user safe – no solvent clean up or disposal problems
M60 Plaster Mortar – White
| Product Attributes | Value |
|---|---|
| Specific gravity (kg/dm3) | 1.60 |
| Bending/Tensile strength (N/mm2) | 1.5 – 50 |
| Compression strength (N/mm2) | 14.5 – 20.0 |
| Dynamic E-modulus (KN/mm2) | 12.0 – 13.0 |
| Water absorption (%) | 10 |
| Water mixing factor (litre/25kg) | 350 – 400 |
| Volume mixed mortar (ml/kg) | 700 |
| Consumption (kg/m2, 15 mm thickness) | 1.5 |
| Linear expansion coefficient (%) | 0.03 |
| Hydraulic expansion coefficient (%) | 0.10 |
| Water vapour permeability (my) | 16.76 |
| Capillary water absorption (w value) | 14.40 |
This video demonstrates the helical bars being used to create deep brick beams to span a window opening. The stainless steel helical reinforcing bars are bonded with WHO-60 polymer modified grout into cut slots cut into masonry. It offers a quick, simple and durable solution for strengthening and stabalising damaged masonry structures
